A270 Light Duty Joist Hanger (Standard Leg)

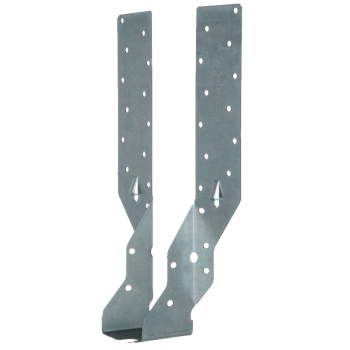

A lightweight galvanised joist hanger providing a strong connection and quick and easy installation.

Designed with wider 50mm strap legs to enhance performance with increased nail spacing.

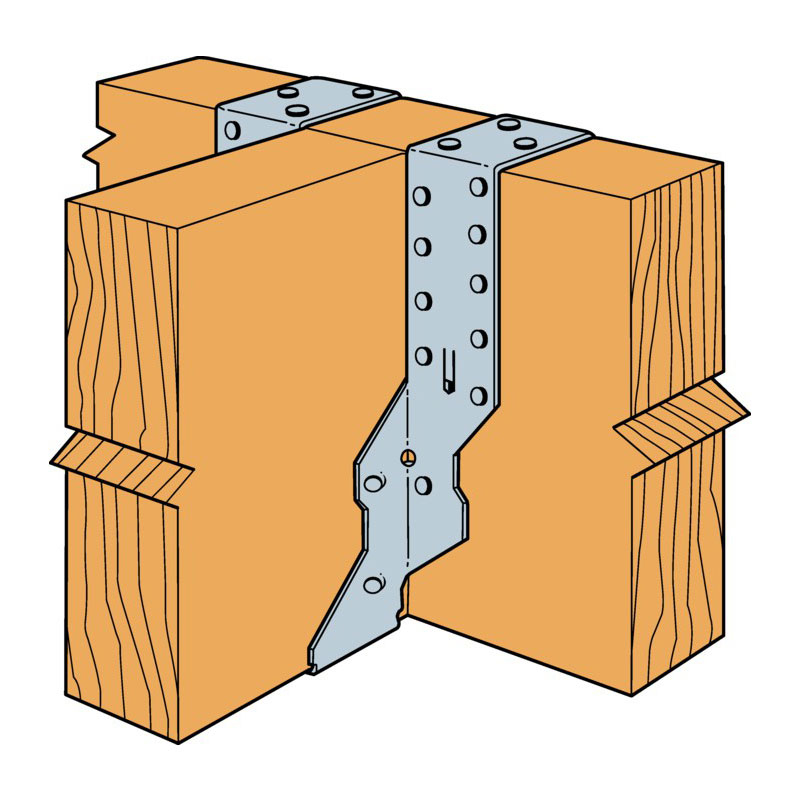

Suitable for joist depths of 150 to 250mm. Leg length can be adjusted by wrapping over to suit joist height. Also suitable for face fixing.

 Product Reference  S.W.L.(KN)** C16 timber C30. timber  Width (W)  Side (S)  Leg (L)
 A270/38  C16 5.30 / C30 5.87  38mm  126mm  276mm
 A270/44  C16 5.30 / C30 5.87  44mm  123mm  273mm
 A270/47  C16 5.30 / C30 5.87  47mm  122mm  272mm
 A270/50  C16 5.30 / C30 5.87  50mm  120mm  270mm
 A270/63  C16 6.22 / C30 6.81  63mm  114mm  264mm
 A270/75  C16 5.94 / C30 6.50  75mm  108mm  258mm
 A270/88  C16 5.94 / C30 6.50  88mm  102mm  252mm
 A270/100  C16 5.94 / C30 6.50  100mm  95mm  245mm

Bearing Surface 50mm

Please note: Safe Working Load refers to 50mm wide hangers - characteristic strength/slip modulus/medium term loads are available for all sizes 38 -100mm.

Please note: Safe Working Loads stated above are the lower of the load at 2.5mm deflection of the hanger tested or medium term loads in accordance with BS5268/EC5.

Full Data Sheets are available for the above products, based on independent destructive testing and analysis carried out by Ceram Research or Huddersfield University.

See the Download Section for the Data Sheet
